Navigator AC320 ABT Osc

Controlled clay pigeon trap performance, built for fixed setups

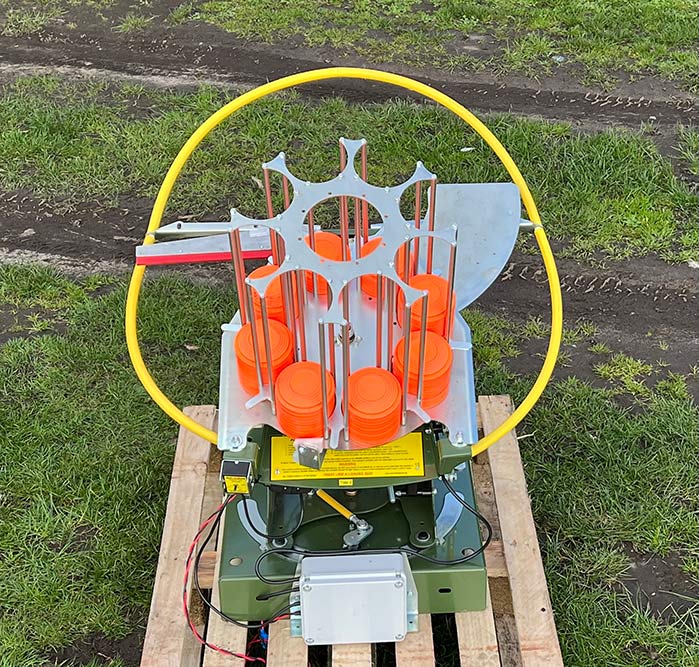

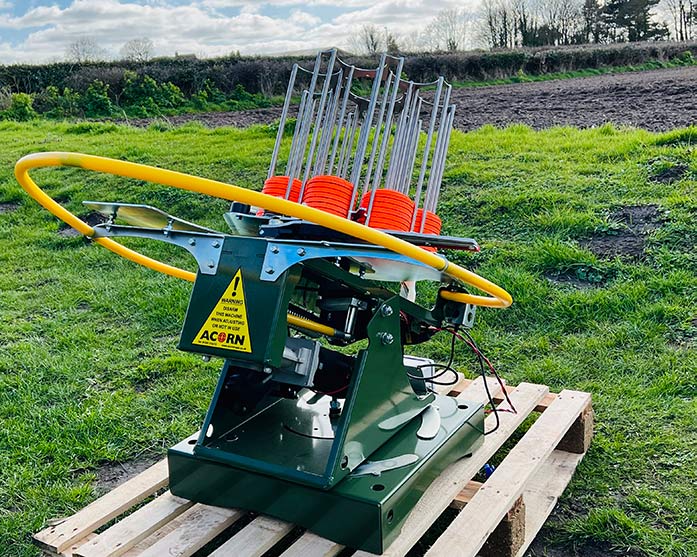

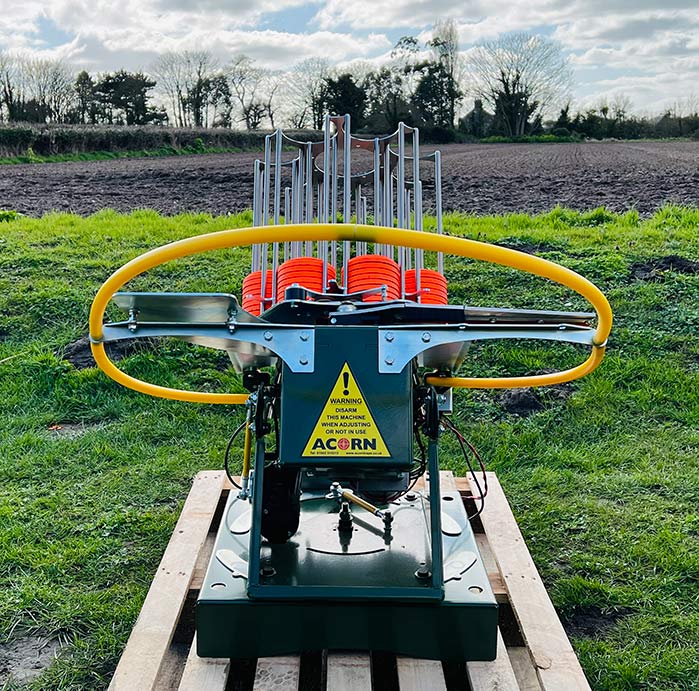

The Acorn Navigator AC320 ABT Osc is a clay pigeon trap system designed to give you precise control over your target presentation from a fixed position. Ideal for sporting layouts, club use and structured practice setups, it allows you to introduce movement and variation without the need for a mobile system.

Built around the proven AutoClay 320 and paired with the Navigator control system, it combines consistent performance with the ability to adjust and refine your targets with ease.

Why choose the Navigator AC320 ABT Osc?

  • Clay pigeon trap with oscillation and vertical lift
  • Fixed-position setup with adjustable height and direction
  • Controlled via Navigator radio for precise adjustment
  • Designed and manufactured in the UK for long-term reliability

A clay pigeon trap that adds movement to fixed setups

Not every layout needs to move — but every layout benefits from variation.

The Navigator AC320 ABT Osc allows you to introduce controlled movement from a fixed position, giving you a more varied and less predictable target presentation. This makes it particularly effective for established stands or areas where the trap position remains constant.

Controlled target presentation

With both oscillation and vertical lift available, you can adjust height, angle and direction to refine your targets.

Paired with the Navigator radio system, these adjustments can be made with precision, allowing you to maintain a consistent setup while still introducing variation where needed.

Built for consistent performance

At its core, the system uses the AutoClay 320 clay pigeon trap, delivering strong and reliable throwing performance.

Capable of throwing targets to distances of around 130 metres, it provides consistent, repeatable targets suitable for a wide range of shooting disciplines.

Suitable for a wide range of applications

The Navigator AC320 ABT Osc works well across a broad range of shooting uses, including:

  • Sporting layouts
  • Club and ground use
  • Practice and training environments
  • Fixed-position shooting stands

It is particularly suited to locations where the trap position is established but variation in target presentation is still required.

Designed and manufactured in the UK

Like all Acorn systems, the Navigator AC320 ABT Osc is designed and manufactured by us here in the UK. It reflects a practical, engineering-led approach, built for reliable use in real shooting environments.

Looking for something more flexible?

If you require mobility or the ability to reposition your trap across different areas of ground, the Quad version may be more suitable.

Speak to Acorn

If you would like to discuss the Navigator AC320 ABT Osc, call us to talk through your requirements or use our contact form and we will come back to you.

See The Full Description Request A Quote

System & Configuration

  • System type: Clay pigeon trap with oscillating base
  • Trap model: AutoClay 320
  • Mounting: Fixed position with integrated movement
  • Installation: Suitable for fixed or semi-permanent setups
  • Build: Heavy-duty construction for regular use

Target Presentation

  • Movement: Left-to-right oscillation
  • Vertical adjustment: Integrated lift for height variation
  • Presentation range: Variable direction and height
  • Adjustability: Controlled via Navigator radio system

Performance

  • Throwing distance: Up to approximately 130 metres (setup dependent)
  • Target consistency: Clean, repeatable target delivery
  • Operation: Smooth, reliable cycling for regular use

 Control & Operation

  • Control system: Acorn Navigator radio
  • Functionality: Control of oscillation and vertical lift
  • Adjustment: Precise positioning and target setup
  • User operation: Suitable for single-operator use

Build & Durability

  • Construction: Designed for outdoor and regular use
  • Finish: Durable protective coating
  • Engineering: Designed and manufactured in the UK
  • Maintenance: Straightforward access for servicing

Applications

  • Sporting layouts
  • Clubs and shooting grounds
  • Practice and training environments
  • Fixed shooting stands

Optional Configuration

  • Integration into larger shooting layouts
  • Bespoke system design based on requirements

Notes

  • Throwing performance depends on setup, spring configuration and installation

A Controlled Clay Pigeon Trap System for Fixed Setups

The Navigator AC320 ABT Osc is designed to deliver precise, controlled target presentation from a fixed position. It is well suited to shooting layouts where the trap location remains consistent, but variation in target height, angle and direction is still required.

Built around the proven AutoClay 320 and paired with the Navigator control system, it provides a reliable and adaptable solution for structured shooting environments.

Full Control Without Moving the Trap

One of the key strengths of the Navigator AC320 ABT Osc is the level of control it offers while remaining in a fixed position.

With both left-to-right oscillation and vertical lift built into the system, you can adjust your target presentation to create a wide range of angles and trajectories. This allows you to introduce variation and keep targets engaging, without the need to reposition the machine.

Paired with the Navigator radio, these adjustments can be made with precision, giving you full control over how your targets are presented.

Designed for Structured Layouts

The Navigator AC320 ABT Osc is particularly well suited to established stands and shooting layouts where the trap position is set, but the presentation still needs to vary.

It allows you to maintain a consistent setup while introducing enough movement and variation to avoid predictable targets. This makes it a practical solution for clubs, shooting grounds and training environments.

Consistent, Proven Performance

At its core, the system uses the AutoClay 320 clay pigeon trap, delivering strong and consistent throwing performance.

Capable of throwing targets to distances of around 130 metres, it provides reliable, repeatable target delivery across a wide range of shooting disciplines. This consistency is essential for both practice and regular use.

Built for Regular Use

The Navigator AC320 ABT Osc is designed for ongoing use in real-world conditions. The construction is robust, the system is straightforward to operate, and it is built to perform reliably over time.

It is well suited to customers who require dependable equipment for regular shooting without unnecessary complexity.

Designed and Manufactured in the UK

Like all Acorn systems, the Navigator AC320 ABT Osc is designed and manufactured by us here in the UK. It reflects a practical, engineering-led approach, built by people who understand both the machinery and how it is used in the field.

A Practical, High-Control Shooting Solution

If you are looking for a clay pigeon trap system that provides precise control over target presentation from a fixed position — with the ability to adjust height, angle and direction — the Navigator AC320 ABT Osc offers a focused and highly capable solution.

Videos

What is the Navigator AC320 ABT Osc?

The Navigator AC320 ABT Osc is a clay pigeon trap system combining the AutoClay 320 with an oscillating base, vertical lift and Navigator radio control. It is designed for fixed-position setups where controlled variation in target presentation is required.

What does oscillation mean?

Oscillation refers to the trap moving left to right, allowing it to throw targets in different directions rather than along a single fixed line. This creates more varied and less predictable target presentations.

Can I adjust the height of the targets?

Yes, the system includes vertical lift, allowing you to change the height of the trap and create higher or more varied target presentations.

Can I move this system around?

The Navigator AC320 ABT Osc is designed for fixed or semi-permanent setups. If you need to regularly reposition your trap across different areas of ground, the Quad version would be more suitable.

What does the Navigator radio do?

The Navigator is Acorn’s wireless control system, allowing you to control functions such as oscillation and vertical lift remotely. It gives you precise control over your target presentation without needing to adjust the machine manually.

How far will the trap throw targets?

The system is capable of throwing targets to distances of around 130 metres, depending on setup.

Is this suitable for clubs and shooting grounds?

Yes, it is well suited to clubs and shooting grounds, particularly for fixed stands where consistent but varied targets are required.

What is the difference between the Osc and Quad versions?

Both systems offer oscillation and vertical lift.

The key difference is mobility.
The Osc version is designed for fixed setups where the trap position stays the same, while the Quad version is mounted on a trailer, allowing it to be moved and repositioned across the ground.

If you want a stable, fixed setup with full control over presentation, the Osc is ideal.
If you need flexibility to move your traps and adapt your layout, the Quad offers that additional freedom.

Is it suitable for regular use?

Yes, the system is designed for regular operation and is built to perform reliably in real shooting environments.

Is it manufactured in the UK?

Yes, all Acorn systems are designed and manufactured in the UK.

Can I discuss a bespoke setup?

Yes. If you have a particular layout or target presentation in mind, Acorn can help design a system tailored to your requirements
